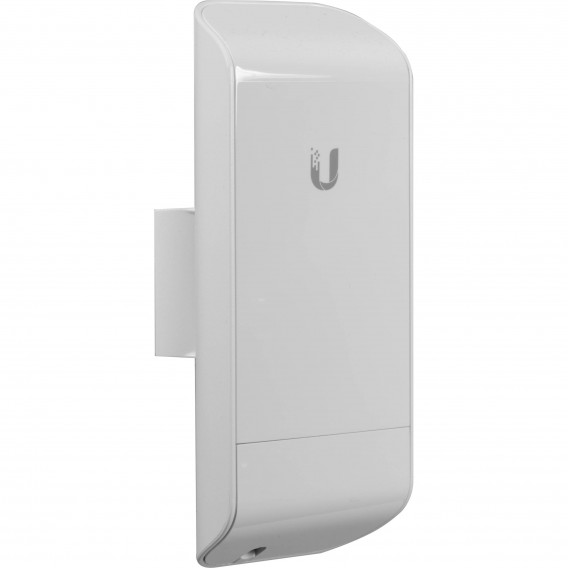

Ubiquiti Nano station Loco m5 airMAXCPE

Dimensions 161 x 31 x 80 mm (6.31 x 1.22 x 3.15")

Weight 180 g (6.35 oz)

Power Supply (PoE) 24V, 0.5A

Max. Power Consumption 5.5W 5.5W

Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)

Operating Frequency Worldwide: 5170-5875 MHz

US: 5725-5850 MHz

USA DFS: 5250-5850 MHz

Gain 13 dBi

Networking Interface (1) 10/100 Ethernet Port

Processor Specs Atheros MIPS 24Kc, 400 MHz

Memory 64 MB DDR2, 8 MB Flash

Frequency 5 GHz

Cross-pol Isolation 20 dB Minimum

Max. VSWR 1.4:1

Beamwidth 45° (H-pol) / 45° (V-pol) / 45° (Elevation)

Polarization Dual Linear

Enclosure Outdoor UV Stabilized Plastic

Mounting Pole-Mount (Kit Included)

Operating Temperature -30 to 75° C (-22 to 167° F)

Operating Humidity 5 to 95% Noncondensing

Wireless Approvals FCC Part 15.247, IC RS210, CE

RoHS Compliance Yes

Shock & Vibration ETSI300-019-1.4
