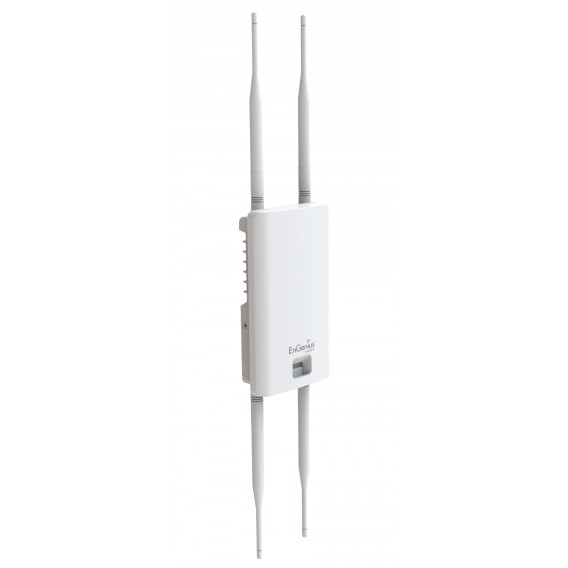

Engenius ac Outdoor Access Point ENS620EXT

Product Code: Engenius ENS620EXT
Availability: In Stock

1 reviews
Write a review

Description
Reviews (1)

Engenius EnTurbo™ Outdoor Wireless Access Point, Dual-Band AC1300 ENS620EXT

Technical Specifications

Standards
IEEE 802.11b/g/n on 2.4 GHz
IEEE 802.11a/n/ac on 5 GHz
IEEE 802.1r
IEEE 802.1k
IEEE 802.11x

Processor
Qualcomm® 717 MHz Quad-Core CPU
4x ARM Cortex A7

Memory Capacity
Memory: 256 MB
Flash Memory 32 MB

Antenna
4 x 5dBi External Detachable SMA Omni-Directional Antennas

Physical Interface
2 x 10/100/1000 Gigabit Ethernet Ports
- LAN1
- LAN2
1 x Reset Button

LED Indicators
1 x Power
WLAN (Wireless Connection)
2.4 GHz
5 GHz
2 x LAN

Power Source
PoE Injector (EPA2410GP)
INPUT: 100-240VAC, 0.7A, 50-60Hz
OUTPUT: 24V, 1A
Power-over-Ethernet: Proprietary 24V PoE
IEEE 802.11e Compliant Source
Active Ethernet (PoE)

Mounting
Wall Mount
Pole Mount

Surge Protection
Line to Line: 1 KV
Line to Ground: 2KV

ESD Protection
Contact: 4KV
Air: 8 KV

Ingress Protection Marking
IP55-Rated Waterproof/Dustproof Enclosure

Wireless & Radio Specifications

Operating Frequency
Dual-Radio Concurrent 2.4GHz & 5GHz

Operation Modes
Access Point Mode (AP mode)
Client Bridge Mode (CB Mode)
WDS: WDS AP, WDS Bridge, WDS Station

Frequency Radio
2.4GHz: 2400 MHz ~ 2835 MHz
5GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725MHz ~ 5850MHz

Transmit Power
Up to 27 dBi on 2.4 GHz
Up to 27 dBi on 5 GHz
Max transmit power is limited by regulatory power

Radio Chains/Spatial Streams
11AC Wave2 2x2:2

Tx Beamforming (TxBF)

SU-MIMO
5GHz - Two (2) Spatial Streams SU-MIMO up to 1267 Mbps to a single client

MU-MIMO
5GHz - Two (2) Spatial Streams MU-MIMO for up to 1267Mbps to two (2) MU-MIMO capable wireless devices simultaneously

Supported Data Rates (Mbps)
2.4 GHz: Max 400
5 GHz: Max 867
802.11b: 1, 2, 5.5, 11
802.11g: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 400 (MCS0 to MCS15)
802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS=1~2)

Supported Radio Technology
802.11b: Direct-Sequence Spread-Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal frequency-division Multiplexing (OFDM)

Channelization
802.11ac supports very high throughput (VHT)—VHT 20/40/80 MHz
802.11n supports high throughput (HT)—HT 20/40 MHz
802.11n supports very high throughput (VHT) under the 2.4 GHz radio—VHT (256-QAM)
802.11n/ac packet aggregation: AMPDU, ASPDU

Supported Modulation
802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

Management

Multiple BSSID
Supports up to 16 SSIDs, 8 SSIDs per radio

VLAN Tagging
Supports 802.1q SSID-to-VLAN tagging
Cross-band VLAN Pass Through
Management VLAN

Spanning Tree
Supports 802.1d Spanning Tree Protocol

QoS
Compliant with IEEE 802.11e Standard
WMM

SNMP
v1, v2c, v3

MIB
I/II, Private MIB

Management Features

Deployment Options
Stand-Alone (Individually Managed)
Managed Mode (w/ezMaster/Neutron Series Switch)

Stand-Alone Management Features
Auto Channel Selection
Auto Transmit Power
Wireless STA (Client) Connected List
Guest Network
Fast Roaming (802.11k & 802.11r)
Pre-Authentication (802.11i, 802.11x)
PMK Caching (802.11i)
RSSI Threshold
Traffic Shaping
VLANs for Access Point – Multiple SSIDs
Backup/Restore Settings
Auto Reboot
E-Mail Alert
Site Survey
Save Configuration as Users Default

Control Features
Managed Mode (w/ezMaster/Neutron Switch)
Distance Control (ACK Timeout)
Multicast Supported
Wi-Fi Scheduler
Client Traffic Status
RADIUS Accounting
Power Save Mode (U-APSD Support)
CLI Support
HTTPS

Wireless Security
WEP Encryption 64/128/152 bit
WPA/WPA2 Enterprise (WPA-EAP using TKIP or AES)
Hide SSID in Beacons
MAC Address Filtering, Up to 32 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation

Wireless Management Features (w/ezMaster/Neutron Switch)
AP Auto Discovery and Provisioning
AP Auto IP Assignment
AP Group Management
Auto AP Rebooting
AP Device Name Editing
AP Radio Settings
Traffic Shaping
Fast Roaming (802.11k & 802.11r)
Pre-Authentication (802.11i, 802.11x)
PMK Caching (802.11i)
RSSI Threshold
AP Client Limiting
Client Fingerprinting
AP VLAN Management
VLANs for AP - Multiple SSIDs
Secured Guest Network
Access Point Status Monitoring
Wireless Client Monitoring
Email Alert
Wireless Traffic & Usage Statistics
Real-time Throughput Monitoring
Visual Topology View
Floor Plan View
Map View
Wireless Coverage Display
Secure Control Messaging (SSL Certificate)
Local MAC Address Database
Remote MAC Address Database (RADIUS)
Unified Configuration Import/Export
Bulk Firmware Upgrade Capability
Intelligent Diagnostics
Kick/Ban Clients
Wi-Fi Scheduler

Environmental & Physical

Temperature Range
Operating: -4°F to 140°F, -20°C to 60°C
Storage: -22°F to 176°F, -30°C to 80 °C

Humidity (Non-condensing):
Operating: 90% or less
Storage: 90% or less

Device Dimensions & Weights

ENS620EXT Device
Weight: 1.11 lbs. (507 g)
Width: 7.54” (191.6 mm)
Length: 4.49” (114.3 mm)
Height” 1.88” (47.7 mm)

Package Contents
- ENS620EXT 11ac Wave 2 Outdoor AP
- PoE Injector (EPA2410GP)
- Pole Mount Ring
- Mounting Screw Set
- RJ-45 Ethernet Cable
- Quick Installation Guide
- 2 - 2.4GHz 5dBi SMA Antennas
- 2 - 5GHz 5dBi SMA Antennas

Certifications
FCC
IC

Warranty
1 Year
