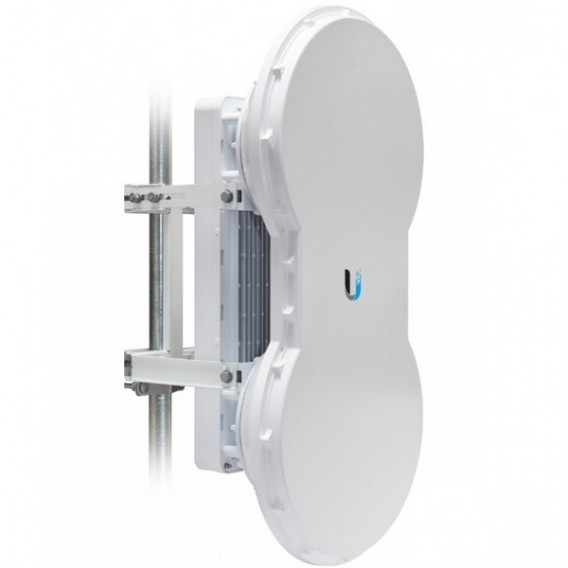

Ubiquiti AF5U AirFiber Gbps Gigabit

  • Product Code:Ubiquiti AF5U
  • Availability:In Stock

Superior Processing

Ubiquiti Networks introduces our proprietary INVICTUS™ core communications processing engine. The speed, power, and efficiency of this integrated circuit enhances the performance of airFiber AF5/AF5U.

Efficient Use of 5 GHz Band

airFiber AF5/AF5U features 1 MHz center channel resolution with market-leading Power Envelope Tracking technology. airFiber AF5/AF5U accurately and continuously controls transmit power relative to the band edge. The power level automatically tracks to optimize performance near band edges, allowing you to choose the part of the band with the least interference.

Long-Range Links

Newly developed for airFiber AF5/AF5U, the patent-pending xRT feature uses an innovative, adaptive multi-channel coding scheme to enhance radio transceiver performance, thereby maximizing your link budget and spectrum utilization – while still maintaining regulatory compliance. This results in links that can span distances from 10 m up to 100+ km.

Quick and Easy Installation

The unique sliding-clamp design of airFiber AF5/AF5U allows mounting hardware to be pre-assembled prior to installation – no more dropped screws at the top of the tower. As an added convenience, the drop-in cradle mount design allows the installer to attach mounting hardware to the pole without having to support the weight of the airFiber radio during installation.

Product Details

  • Operating Frequency: 5.6 -6.2 GHz
  • Dimensions: 938.4 x 468.4 x 281.4 mm
  • Weight: 16 kg (mount included)
  • Max. Power Consumption: 40W
  • Power Supply: 50V, 1.2A PoE GigE Adapter (Included)
  • Power Method: Passive Power over Ethernet (42-58V)
  • Pole Mount Kit (Included)
  • Operating Temperature: -40 to 55°C (-40 to 131°F)
  • Data Port: 1x 10/100/1000 Ethernet Port
  • Configuration Port: 1x 10/100 Ethernet Port
  • Auxiliary Port: 1x RJ-12, Alignment Tone Port

System Information:

  • Maximum Throughput: 1.0+ Gpbs
  • Maximum Range: 100+ km (dependent on regulatory region)
  • Packets per Second: 1+ Million
  • Encryption: 128-bit AES
  • FEC: 164/205
  • Uplink/Downlink Ratio: 50% Fixed
  • Radio Frame Synchronization: GPS
  • Channel Bandwidth: 50 MHz
  • TX/RX Gain: 23 dBi
  • Beamwidth: 6°
  • Polarity: Dual Slant Polarization
