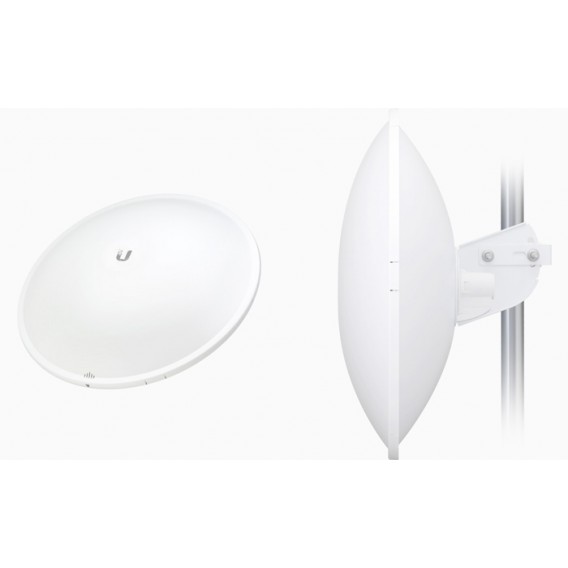

POWER BEAM PBE M5 400

Dimensions 420 x 420 x 275 mm

(16.54 x 16.54 x 10.83")

Weight (Mount Included) 1.753 kg (4.789 lb)

Gain 25 dBi

Output Power 26 dBm

Networking Interface (1) 10/100/1000 Ethernet Port

Enclosure Outdoor UV Stabilized Plastic

Max. Power Consumption 8W

Max. TX Power 26 dBm

Power Supply 24V, 0.5A Gigabit PoE Adapter

Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)

Mounting Pole Mounting Kit Included

Wind Survivability 200 km/h (125 mph)

Wind Loading 342.5 N @ 200 km/h (77 lbf @ 125 mph)

Salt Fog Test IEC 68-2-11 (ASTM B117),

Equivalent: MIL-STD-810 G Method 509.5

Vibration Test IEC 68-2-6

Temperature Shock Test IEC 68-2-14

UV Test IEC 68-2-5 at 40° C (104° F),

Equivalent: ETS 300 019-1-4

Wind-Driven Rain Test ETS 300 019-1-4,

Equivalent: MIL-STD-810 G Method 506.5

Operating Humidity 5 to 95% Noncondensing

Operating Temperature -40 to 70° C (-40 to 158° F)

Certifications CE, FCC, IC
