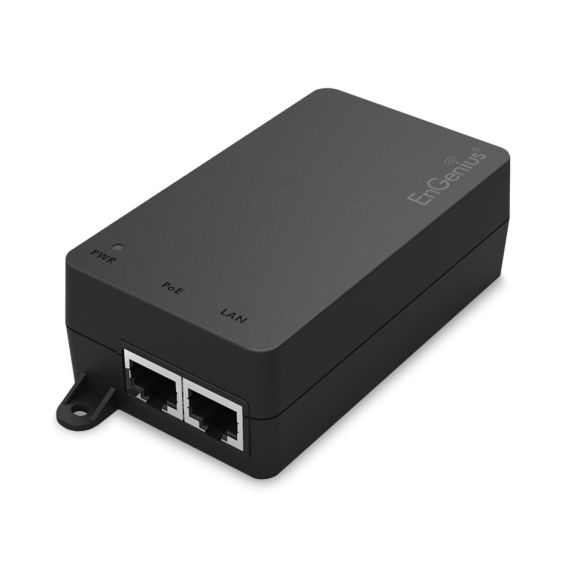

EnGenius EPA5006GP Power over Ethernet Adapter

EnGenius EPA5006GP Passive 54V Gigabit Power-over-Ethernet Adapter

Standards
802.3 10BaseT
802.3u 100BaseT
802.3ab Gigabit Ethernet

Compliance
FCC Part 15 Class B
IEC 60950-1:2005+A1
UL60950-1 2nd
CE
ENS55032:2012/AC:2013
EN55024:2010
RCM
AS/NZS60950.1: 2011/Amdt 1: 2012

Physical Interface
(1) Gigabit Data Port
(1) Gigabit Data & Power Output Port
(1) IEC 320C6 AC Connector

LED Indicator
1 x Power on Green

Mounting
Wall (anchors & screws included)

Power
Input Voltage
100 to 240VAC

Input Current
0.8A Max for 120VAC

AC Input Frequency
50-60Hz

Maximum Output Power
32.8W

Power Lines
Pin4(Vdc+)&Pin5(Vdc+)
Pin7(Vdc-)&Pin8(Vdc-)

Data Specifications
10/100/1000 Mbit/s
Pin1(Rx+)&Pin2(Rx-)
Pin3(Tx+)&Pin6(Tx-)

Added Protection Features
Short-Circuit
Surge (over current/over voltage)

Surge Protection
L-L: 2KV
L-G: 4KV

ESD Protection
Contact: 4KV
Air: 8 KV

Temperature Range
Operating: 32°F to 104°F (0°C to 40°C)
Storage: -22°F to 176°F (-30°C to 80°C)

Humidity (non-condensing)
Operating: 5 to 90% or less
Storage: 5 to 90% or less

EPA5006GP Device (Without Mounting Kit)
Weight: 0.317 lbs. (144 g)
Length: 3.9” (100 mm)
Width: 2.27” (58.5 mm)
Height: 1.3” (33.4 mm)

Package Contents
EPA5006GP
Power Cord
