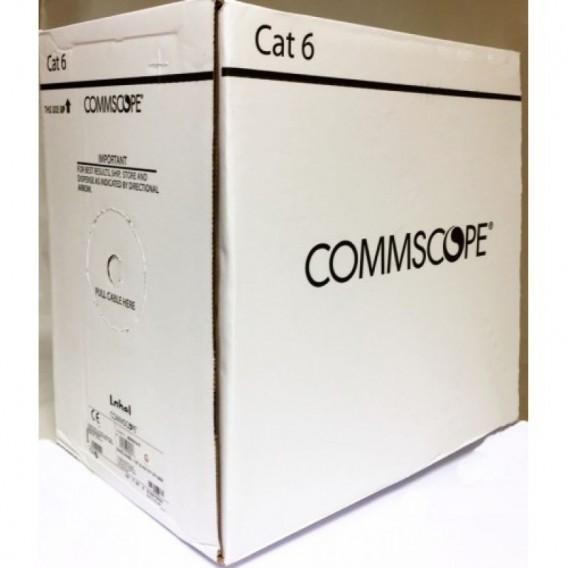

Commscope cat6 Twisted pair cable

  • Product Code: Commscope cat6 cable
  • Availability: In Stock
Construction Materials
Jacket Material   Low Smoke Zero Halogen (LSZH)
Conductor Material   Bare copper
Insulation Material   Polyolefin
Separator Material   Polyolefin
Dimensions
Cable Length   305 m   |   1000 ft
Cable Weight   19.10 lb/kft
Diameter Over Jacket, nominal   5.715 mm   |   0.225 in
Jacket Thickness   0.559 mm   |   0.022 in
Electrical Specifications
ANSI/TIA Category   6
Characteristic Impedance   100 ohm
dc Resistance Unbalance, maximum   5%
dc Resistance, maximum   9.38 ohms/100 m
Delay Skew, maximum   24 ns
Mutual Capacitance   5.6 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP)   69%
Operating Frequency, maximum   250 MHz
Operating Voltage, maximum   80 V
Transmission Standards   ANSI/TIA-568-C.2   |   CENELEC EN 50288-6-1   |   ISO/IEC 11801 Class E
Safety Voltage Rating   300 V
Dielectric Strength, minimum   1500 Vac   |   2500 Vdc
Note   All electrical transmission tests include swept frequency measurements
Environmental Specifications
Environmental Space   Low Smoke Zero Halogen (LSZH)
Smoke Test Method   IEC 61034-2
Acid Gas Test Method   IEC 60754-2
Flame Test Method   IEC 60332-3-22
Installation Temperature   0 °C to +60 °C (+32 °F to +140 °F)
Operating Temperature   -20 °C to +60 °C (-4 °F to +140 °F)
General Specifications
Cable Type   U/UTP (unshielded)
Packaging Type   CommPak® box
Pairs, quantity   4
Cable Component Type   Horizontal
Jacket Color   White
Product Number   CS34Z3
Conductor Gauge, singles   24 AWG
Conductor Type, singles   Solid
Conductors, quantity   8
Ordering Note   Available in Europe, Middle East, and Africa
Separator Type   Tape separator
Mechanical Specifications
Pulling Tension, maximum   11 kg   |   25 lb
