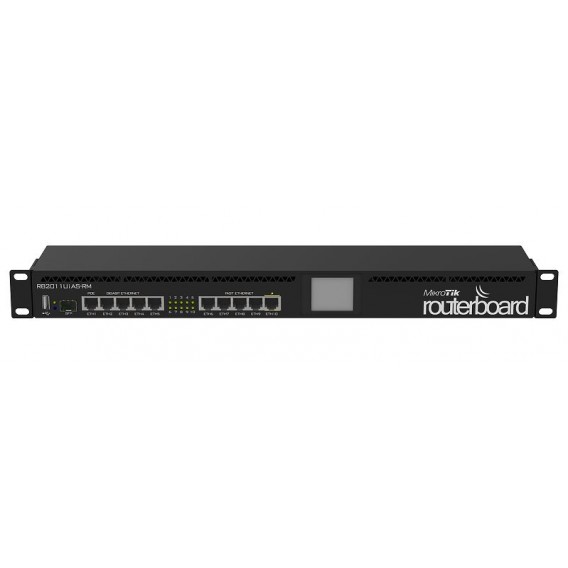

MikroTik RB2011UiAS-RM 1U rackmount

  • Product Code: MikroTik RB2011UiAS
  • Availability: In Stock

MikroTik RB2011UiAS-RM 1U rackmount, 5xEthernet, 5xGigabit Ethernet, USB, LCD, PoE out on port 10, 600MHz CPU, 128MB RAM, RouterOS L5

RouterBOARD 2011UiAS-RM, in comparison with RB2011L series, not only has five Gigabit LAN ports and five Fast Ethernet LAN ports, but also has RJ45 serial port, USB port and more RAM (128MB instead of 64MB). Also, it has RouterOS L5 license (instead of L4) and nice touchscreen LCD for configuration. SFP cage is also present (SFP module not included!)

There is PoE output function for port #10 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.

Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)

RouterBOARD 2011UiAS-RM comes with 1U rackmount enclosure, LCD panel and power supply

Specifications

Details
Product codeRB2011UiAS-RM
ArchitectureMIPSBE
CPUAR9344
CPU core count1
CPU nominal frequency600 MHz
Dimensions214mm x 86mm for PCB
License level5
Operating SystemRouterOS
Size of RAM128 MB
Storage size128 MB
Storage typeNAND
Tested ambient temperature-35C to +65C
Suggested price$119.00

Powering

Details
PoE inPassive PoE
PoE outPassive PoE
PoE in input Voltage8-30 V
Number of DC inputs2 (DC jack, PoE-IN)
DC jack input Voltage8-30 V
Max out per port output (input > 30 V)0 mA
Max out per port output (input < 30 V)510 mA
Max total out (A)510 mA
Max power consumption6
Max power consumption without attachments6W

Ethernet

Details
10/100 Ethernet ports5
10/100/1000 Ethernet ports5

Fiber

Details
SFP DDMIYes
SFP ports1

Peripherals

Details
Serial portRJ45
Number of USB ports1
USB Power ResetYes
USB slot typeUSB type A
Max USB current (A)2

Other

Details
PCB temperature monitorYes
Voltage MonitorYes
