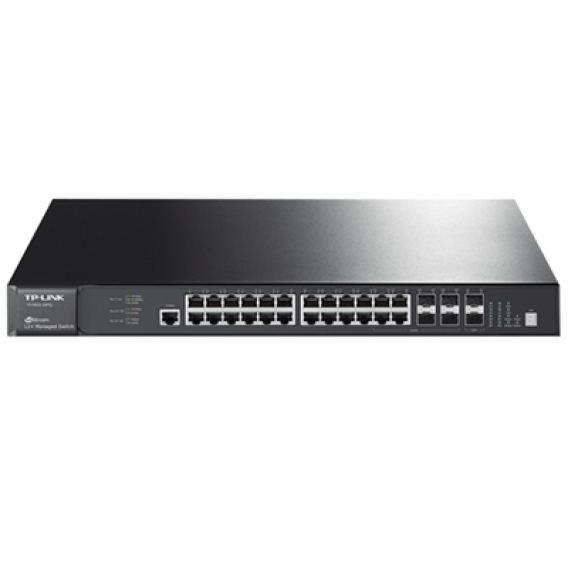

TP-LINK T2700G-28TQ-L1000 24 Port Gigabit Switch

  • Product Code: TP-LINK T2700G-28TQ-L1000
  • Availability: In Stock

TP-LINK T2700G-28TQ-L1000 24 Port Gigabit Switch


Key Features

  • True Physical Stacking technology, 8 units and 320Gbps backplane bandwidth for high scalability and redundancy
  • 10 Gigabit Ethernet uplink provides high-bandwidth applications for congestion relief and smooth data delivery
  • Removable power unit and redundant power supply functionality minimizes downtime
  • Hot-swappable power supply module: PSM150 (Maximum Output Power: 150W)
  • IEEE 802.1q VLAN/MAC VLAN/Protocol VLAN/QinQ/Private VLAN/GVRP

<>Standards and Protocols

  • IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p

Interface

  • 24 10/100/1000Mbps RJ45 Ports
  • (Auto Negotiation/Auto MDI/MDIX)
  • 4 combo gigabit SFP Slots
  • Up to 4 10G SFP+ Slots (2 fixed and 2 optional 10G SFP+ Slots)
  • 1 Console Port

Network Media

  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
  • 100BASE-FX: MMF, SMF
  • 1000BASE-X: MMF, SMF
  • 10GBASE-LR
  • 10GBASE-SR

Fan Quantity

  • 4

Power Supply

  • 100~240VAC, 50/60Hz

Dimensions (W X D X H)

  • 17.32*13*1.73 in.(440*330*44 mm)

Physical Stacking

Stacking Speed (Per Port)

  • 20 Gbps (Full-Duplex)

No. of Units Per Stack

  • 8

Installable SFP+ Transceivers and Direct Attach Copper (DAC) Cables

  • TXM431-SR
  • TXM431-LR
  • TXC432-CU1M
  • TXC432-CU3M

Max Number of Stacking Ports Installable

  • 2 SFP+

Performance

Switching Capacity

  • Up to 128Gbps for a standalone switch

Bandwidth/Backplane

  • Up to 320Gbps when 8 units in the stack

Packet Forwarding Rate

  • Up to 95.2Mpps for a standalone switch

MAC Address Table

  • 32K

Packet Buffer Memory

  • 16 Mbits

Jumbo Frame

  • 10240 Bytes

Number of Routes

  • 12K

Number of Static Routes

  • 256

Number of IP Interfaces

  • 128

Software Features

Basic L3 Features

  • Wire-speed IP forwarding
  • Static Routing
  • RIP v1, v2
  • DHCP Server/Relay

Advanced L3 Features (License Required)

  • OSPF v2
  • ECMP
  • PIM-SM/PIM-DM/IGMP
  • ARP Proxy
  • VRRP

Quality of Service

  • Support 802.1p CoS/DSCP priority
  • Support 8 priority queues
  • Queue scheduling: SP, WRR, SP+WRR
  • Port/Flow- based Rate Limiting
  • Voice VLAN

L2 Features

  • IGMP Snooping V1/V2/V3
  • 802.3ad LACP (Up to 32 aggregation groups, containing 8 ports per group)
  • Spanning Tree STP/RSTP/MSTP
  • BPDU Filtering/Guard
  • TC/Root Protect
  • Loop back detection
  • 802.3x Flow Control

VLAN

  • Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
  • IEEE 802.1Q VLAN/MAC VLAN/Protocol VLAN/QinQ/Private VLAN/GVRP

Access Control List

  • L2~L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports,
  • 02.1p, DSCP, protocol and VLAN ID
  • Time Range Based

Security

  • IP-MAC-Port-VID Binding
  • IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN
  • DoS Defence
  • Dynamic ARP inspection (DAI)
  • SSH v1/v2
  • SSL v2/v3/TLSv1
  • Port Security
  • Broadcast/Multicast/Unknown-unicast Storm Control

Management

  • Web-based GUI and CLI management
  • SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs
  • RMON (1, 2, 3, 9 groups)
  • DHCP/BOOTP Client, DHCP Snooping, DHCP Option82
  • CPU Monitoring
  • Port Mirroring
  • Time Setting: SNTP
  • Integrated NDP/NTDP feature
  • Firmware Upgrade: TFTP & Web
  • System Diagnose: VCT
  • SYSLOG & Public MIBS
  • Dual Image

Others

Certification

  • CE, FCC, RoHS

Package Contents

  • Switch; Power Cord; Quick Installation Guide; Resource CD; Rackmount Kit; Rubber Feet

System Requirements

  • Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8, MAC OS, NetWare, UNIX or Linux.

Environment

  • Operating Temperature: 0?~40? (32?~104?)
  • Storage Temperature: -40?~70? (-40?~158?)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing
