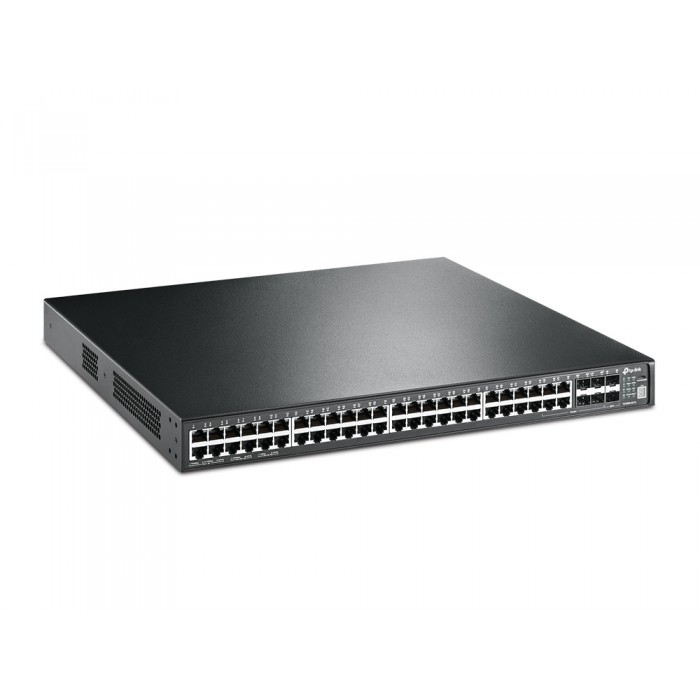

Tp-Link T3700G-52TQ JetStream 52-Port Gigabit Stackable L3 Managed Switch

HARDWARE FEATURES

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p

Interface 48 10/100/1000Mbps RJ45 Ports

(Auto Negotiation/Auto MDI/MDIX)

4 Combo Gigabit SFP Slots

Up to 4 10G SFP+ Slots (2 fixed and 2 optional)

1 Micro-USB, 1 RJ45 Console Port

1 Management Port

1 USB Slot

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)

100BASE-FX: MMF, SMF

1000BASE-X: MMF, SMF

10GBASE-LR

10GBASE-SR

Fan Quantity 2 Removable

Power Supply 100~240VAC, 50/60Hz

Dual Hot-swappable power supply module: PSM150 (Maximum Output Power: 150W)

Dimensions ( W x D x H ) 17.32*16.55*1.73 in. (440*420*44 mm)

PHYSICAL STACKING

Installable SFP+ Transceivers and Direct Attach Copper (DAC) Cables TXM431-SR

TXM431-LR

TXC432-CU1M

TXC432-CU3M

Max Number of Stacking Ports Installable 2 SFP+

No. of Units Per Stack 8

Stacking Speed (Per Port) 20 Gbps (Full-Duplex)

PERFORMANCE

Switching Capacity Up to 176Gbps for a standalone switch

Packet Forwarding Rate Up to 130.9Mpps for a standalone switch

MAC Address Table 32K

Packet Buffer Memory 4MB

Jumbo Frame 12KB

Number of Routes 8K IPv4

Number of Static Routes 256 IPv4

Number of IP Interfaces 128 IPv4

SOFTWARE FEATURES

Quality of Service Support 802.1p CoS/DSCP priority

Support 8 priority queues

Queue scheduling: SP, WRR, SP+WRR

Ingress/Egress DiffServ

Port/Flow- based Rate Limiting

Voice VLAN

L2 Features IGMP Snooping V1/V2/V3

MVR

802.3ad LACP (Up to 64 aggregation groups, 8 ports per group)

Spanning Tree STP/RSTP/MSTP

BPDU Filtering/Guard

TC/Root Protect

Loop back detection

802.3x Flow Control

VLAN Supports up to 4K VLANs simultaneously

IEEE 802.1Q VLAN/MAC VLAN/Protocol VLAN/QinQ/Private VLAN/GVRP

Security IP-MAC-Port-VID Binding

IEEE 802.1X

AAA

Radius/Tacacs+ Authentication and Accounting

DoS Defence

Dynamic ARP inspection (DAI)

IP Source Guard

SSH v1/v2

SSL v2/v3/TLSv1

Port Security

Access Control list

Broadcast/Multicast/Unknown-unicast Storm Control

L3 Features Wire-speed IP forwarding

Static Routing

RIP v1, v2

OSPF v2

ECMP

PIM-SM/PIM-DM/IGMP

DHCP Server/Relay

ARP Proxy

VRRP

Management Web-based GUI and CLI management

SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs

RMON (1, 2, 3, 9 groups)

DHCP/BOOTP Client, DHCP Snooping, DHCP Option82

CPU Monitoring

Port Mirroring

Time Setting: SNTP

Integrated NDP/NTDP feature

Firmware Upgrade: TFTP & Web

SYSLOG & Public MIBS

Dual Image

IPv6 Management

OTHERS

Certification CE, FCC, RoHS

Package Contents Switch; Power Cord; Quick Installation Guide; Resource CD; Rackmount Kit; Rubber Feet

System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux.

Environment Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
