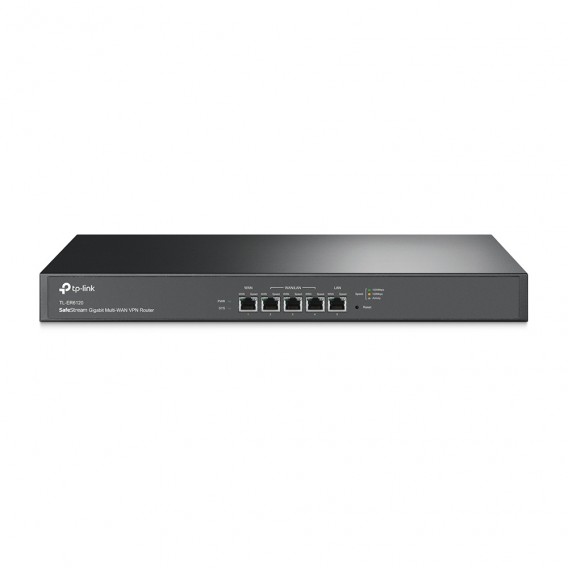

Tp-Link TL-ER6120 Gigabit Multi-WAN VPN Router

  • Product Code:Tp-Link TL-ER6120
  • Availability:In Stock
Tp-Link TL-ER6120 SafeStream Gigabit Multi-WAN VPN Router

HARDWARE FEATURES
Standards and Protocols IEEE 802.3, IEEE802.3u, IEEE802.3ab
TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP
Interface 1 Gigabit WAN port
3 Gigabit WAN/LAN ports
1 Gigabit LAN port
Network Media 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Button Reset Button
Power Supply Internal Universal Power Supply
AC100-240V~ 50/60Hz Input
Flash 32MB
DRAM DDRIII 512MB
LED PWR, SYS, Link/Act, Speed
Dimensions ( W x D x H ) 17.3x7.1x1.7 in.(440x180x44 mm)
PERFORMANCE
Concurrent Session 150000
NAT Throughput 800Mbps
IPsec VPN Throughput (AES256) 373Mbps
IPsec VPN Throughput (3DES) 180Mbps
BASIC FUNCTIONS
WAN Connection Type Static/Dynamic IP,
PPPoE/Russian PPPoE,
PPTP/Russian PPTP,
L2TP/Russian L2TP,
Bigpond Cable
DHCP DHCP Server/Client
DHCP Reservation
MAC Clone Modify WAN/LAN/DMZ MAC Address
IPTV Bridge, Custom
IPv6 IPv6 Support
VLAN 802.1Q VLAN, Port VLAN
ADVANCED FUNCTIONS
Load Balance Intelligent Load Balance
Link Backup (Timing, Failover)
Online Detection
NAT One-to-One NAT
Multi-nets NAT
Virtual Server, DMZ Host, Port Triggering, UPnP
FTP/H.323/SIP/IPsec/PPTP ALG
Routing Static Routing
Policy Routing
Traffic Control IP-based Bandwidth Control
Guarantee & Limited Bandwidth
Time-scheduled Policy
IP-based Session Limit
VPN
IPsec VPN 100 IPsec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
MD5, SHA1 Authentication Algorithm
IPsec NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)
PPTP VPN 50 PPTP VPN Tunnels
PPTP VPN Server/Client
PPTP with MPPE Encryption
L2TP VPN 50 L2TP VPN Tunnels
L2TP VPN Server/Client
L2TP over IPsec
VPN Pass-through IPsec (ESP), PPTP, L2TP
SECURITY
Attack Defense TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN
Filtering MAC Filtering
URL/Keywords Filtering
ARP Inspection Sending GARP Packets
ARP Scanning by WAN/LAN
IP-MAC Binding
Access Control Source/Destination IP Based Access Control
MANAGEMENT
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance Web Management Interface
Remote Management
Export & Import Configuration
SNMP
Diagnostics(Ping & Traceroute)
NTP Synchronize
Syslog Support
Web-based Management Local User Authentication,
Radius Sever Authentication,
Onekey Online
OTHERS
Certification CE, FCC, RoHS
Package Contents TL-ER6120
Power Cord
Rack-mount Kit
Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10
MAC OS, NetWare, UNIX or Linux
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
